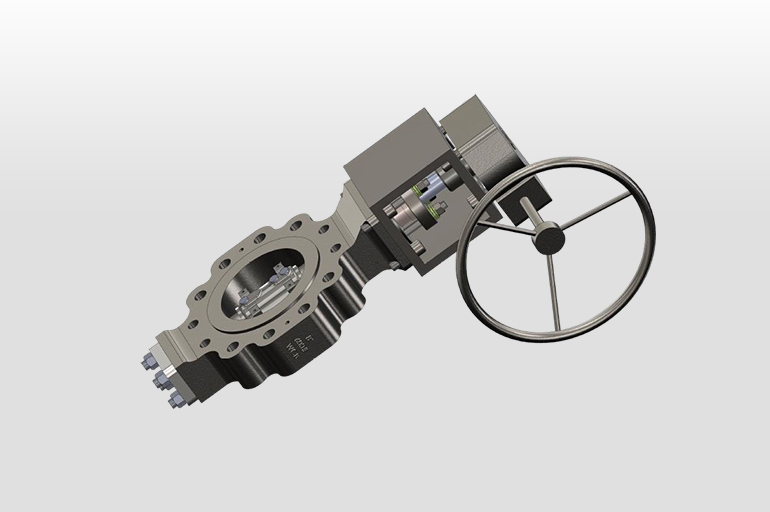

Understanding Triple Offset Butterfly Valves: The Ultimate High-Performance Sealing Solution
In the world of industrial flow control, precision and durability are non-negotiable. Whether you are managing a high-pressure LNG terminal or a complex petrochemical refinery, the choice of valve can mean the difference between seamless operation and costly downtime.
Among the various types of valves available, the Triple Offset Butterfly Valve (TOV) stands out as the gold standard for critical applications. In this blog, we’ll explore what makes these valves unique, how they work, and why Oswal Industries Limited is recognized as a top-tier Triple Offset Butterfly Valve manufacturer.
What is a Triple Offset Butterfly Valve?
A Triple Offset Butterfly Valve is a high-performance valve designed for bi-directional, bubble-tight shut-off in extreme temperatures and pressures. Unlike standard concentric butterfly valves, which use soft seats (like rubber), the TOV utilizes a metal-to-metal seal and a unique geometry to eliminate friction during operation.
The "Three Offsets" Explained
The "Triple Offset" refers to the three distinct geometrical shifts in the valve design that allow the disc to seal against the seat without friction:
- Offset 1: The shaft is located behind the centerline of the sealing surface.
- Offset 2: The shaft is located to one side of the pipe/valve centerline.
- Offset 3: The seat and disc seal cone axis is inclined (eccentric) to the valve centerline.
This third offset is the "game changer." It creates a conical shape that allows the disc to "cam" into the seat. The disc only makes contact with the seat at the final point of closure, eliminating friction and wear, which significantly extends the valve's lifespan.
Key Benefits of Triple Offset Butterfly Valves
- Zero Leakage: Engineered for "bubble-tight" shut-off, meeting API 598 and ASME FCI 70-2 standards.
- Low Torque Operation: Because the disc doesn't rub against the seat, it requires less force to open and close, allowing for smaller, more cost-effective actuators.
- Fire-Safe Design: The metal-to-metal seating makes these valves inherently fire-safe, which is vital for the Oil & Gas industry.
- Durability in Severe Service: They can handle extreme temperatures (from cryogenic to super-heated steam) and high-pressure classes.
Why Choose Oswal Industries Limited?
As a leading Triple Offset Butterfly Valve Manufacturer, Oswal Industries Limited delivers precision-engineered solutions tailored for the most demanding environments.
Technical Excellence
Our valves are manufactured to API 609 standards and are available in a wide range of materials, including Carbon Steel, Stainless Steel, and exotic alloys like Inconel, Monel, and Hastelloy. We offer various configurations, including:
- Wafer & Lugged
- Double-Flanged
- Butt-Weld
Global Reach and Reliability
Recognized as one of the best in the industry, we support EPC contractors and refineries across the USA, Middle East, Europe, and India. Our commitment to quality ensures that every valve provides long-term sealing reliability in Hydrogen, LNG, Power, and Chemical industries.
Applications of TOVs
Triple Offset Butterfly Valves are the preferred choice for:
- LNG & Cryogenic Services: Handling ultra-low temperatures.
- Refineries: Managing high-temperature hydrocarbons.
- Power Plants: Steam isolation and water treatment.
- Chemical Processing: Handling corrosive media with specialized alloys.
Conclusion
If your project requires a valve that combines the space-saving benefits of a butterfly valve with the rugged sealing performance of a globe or gate valve, the Triple Offset Butterfly Valve is the answer.
