Accurate Control at Ultra-Low Temperatures

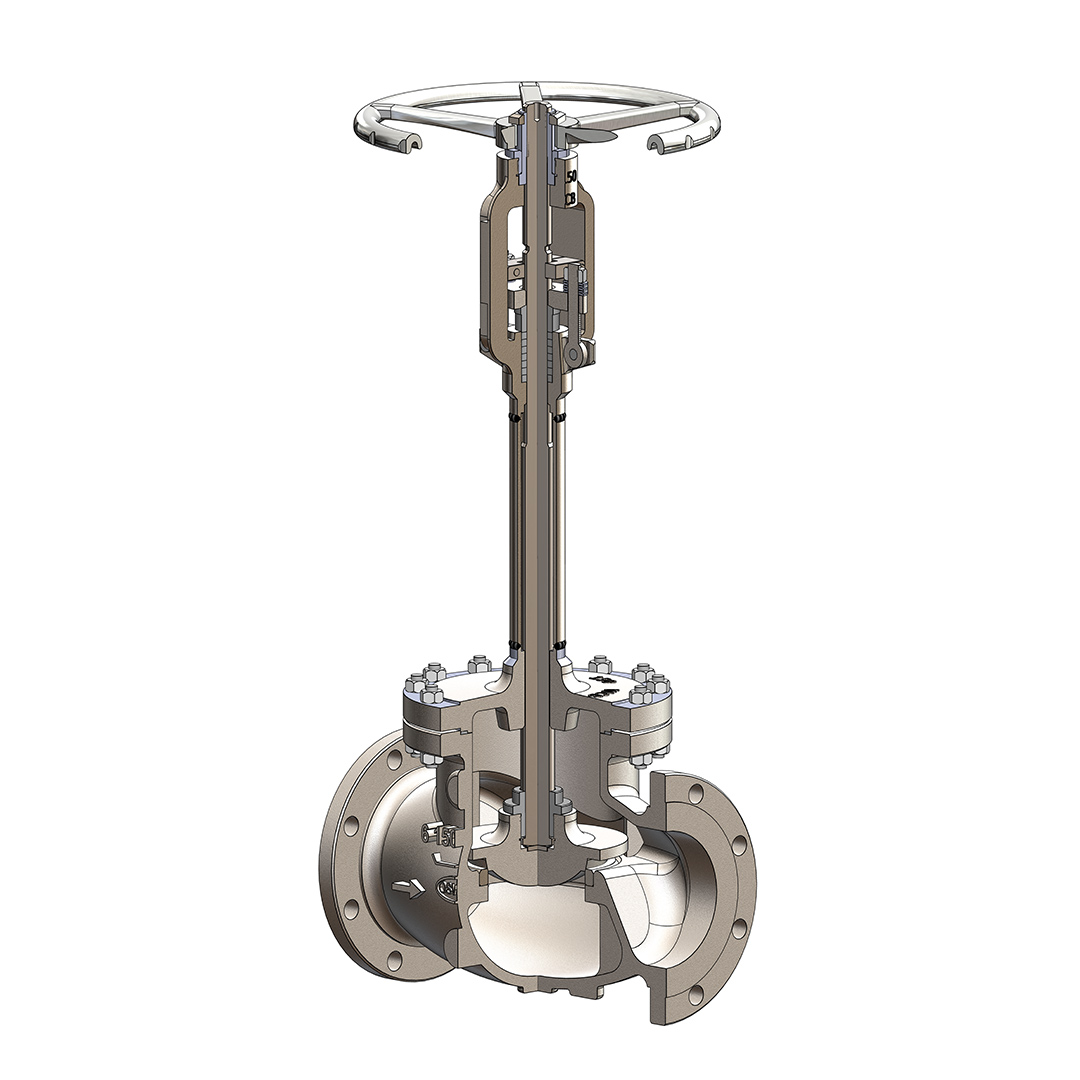

The extended bonnet keeps packing above the vapour line to minimize icing and extend sealing life. Optimized trims and guided disc deliver stable throttling and positive isolation for cryogenic pipelines, terminals and process units.
Size Range & Pressure Class
Size: 2” to 14”
Pressure Class: 150#, 300#, 600#
Soft- or hard-faced trims available per service conditions.
Materials of Construction (MOC)
Metallurgy options for corrosion resistance and low-temperature toughness:
Trim metallurgy can be tailored for sour, erosive and cryogenic media.
Product Specifications
| Size Range | 2" to 14" |
|---|---|
| Class |
150#
300#
600#
|
| MOC |
Carbon Steel
Low Alloy Steel
Low Temperature Carbon Steel
Low Temperature Alloy Steel
Stainless Steel
Duplex & Super Duplex Steel
Inconel
Monel
Hastelloy
|
| End Connections / Construction |
Flange End
Butt Weld End
Socket Welded
Screwed
Extended Bonnet
Rising Stem
|
| Design Standard |
BS 1873
API 623
BS 6364 / ISO 28921
|
| Testing Standard |
API 598
|
| Operation Type |
Manual
Gear Operated
Actuator Operated
|
| Industries |
Oil & Gas
Petrochemicals
Chemicals & Fertilizers
Green/Blue Hydrogen
Power
LNG
FPSO
Water
|
Why Choose Oswal Cryogenic Globe Valves?
Cryogenic-Ready Design
Extended bonnet and low-temperature tested trims for reliable sealing below −100 °C.
Standards-Compliant
Designed to BS 1873 / API 623, cryogenic to BS 6364 / ISO 28921; API 598 tested.
Precise Control
Guided disc and linear characteristics for smooth throttling and positive isolation.
Material Flexibility
CS, SS, Duplex & super alloys for corrosive and cryogenic media.
Get A Quote
Share size, class, end connection and media — we’ll suggest the optimal configuration.
