Efficient, Reliable Flow Control

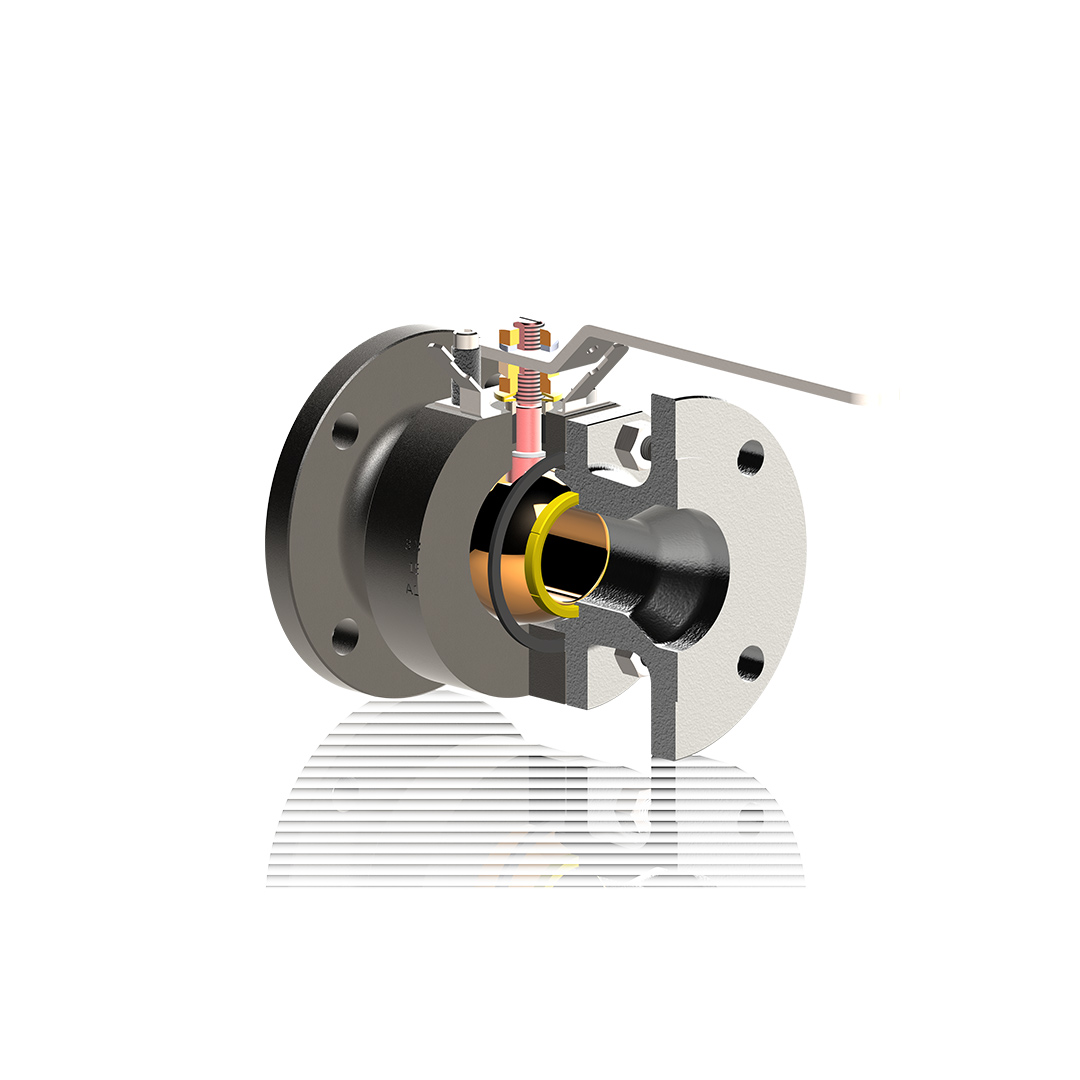

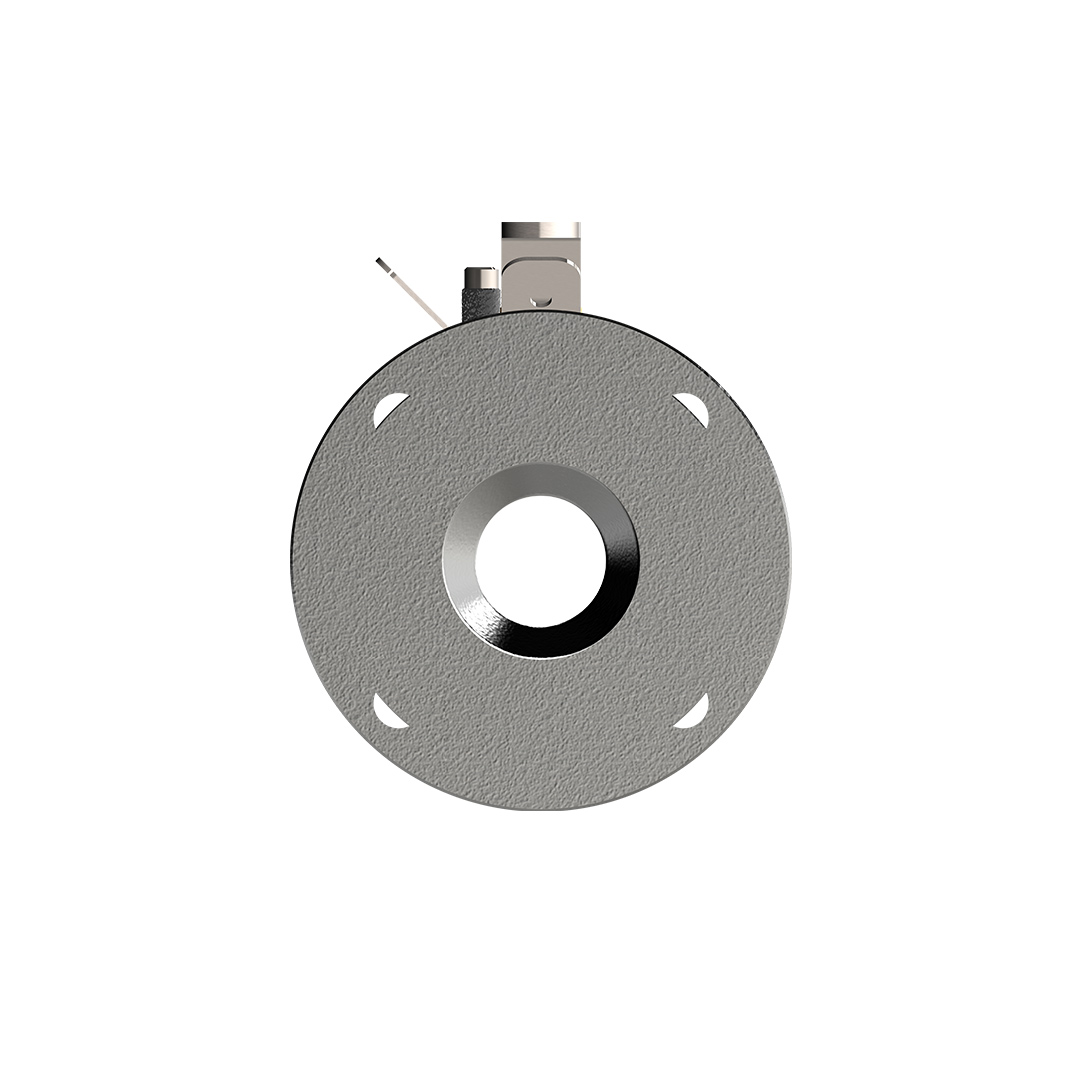

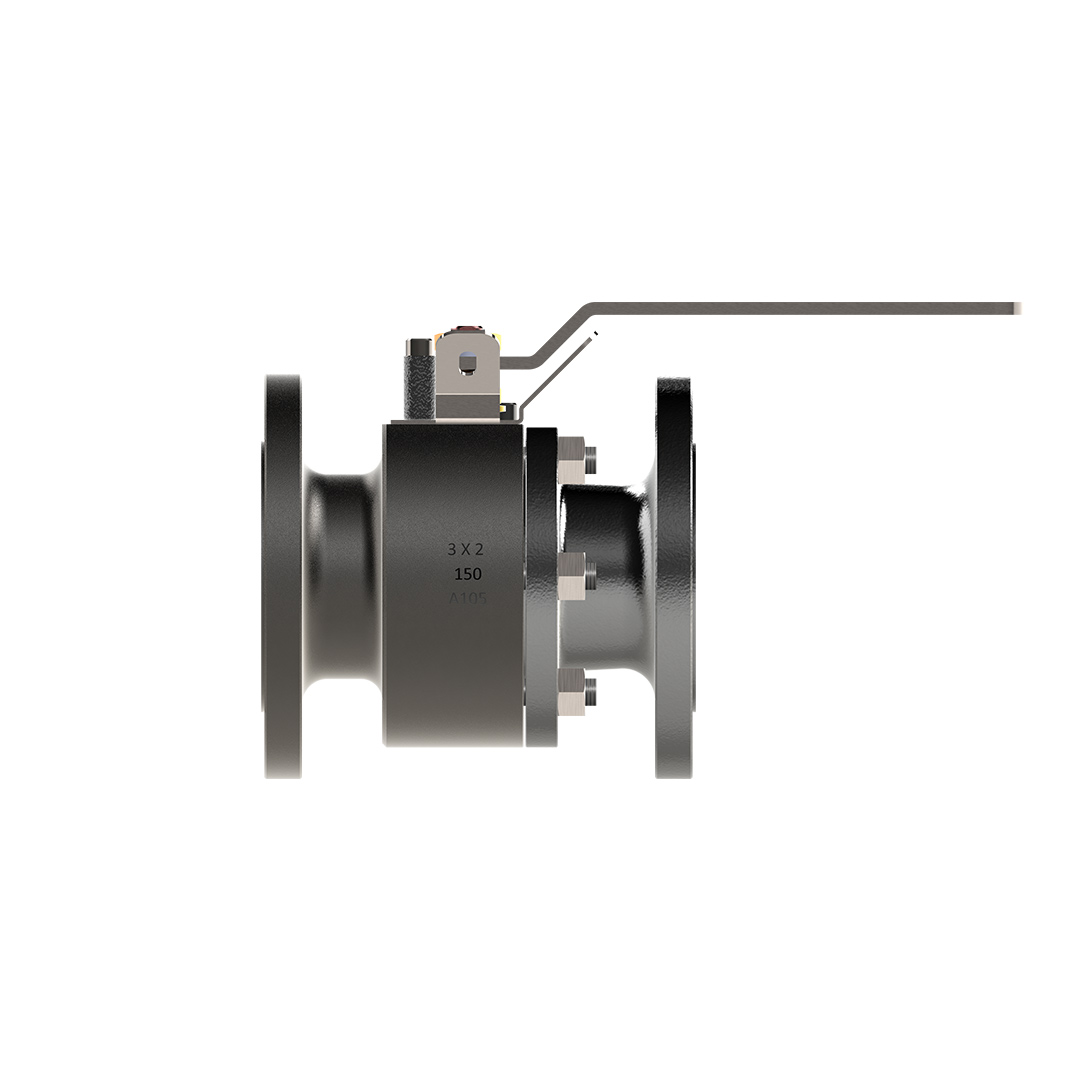

Oswal’s Floating Ball Valves deliver low operating torque and positive shut-off across a broad pressure range. With options for fire-safe design, anti-static device, locking arrangement and low fugitive emissions, they are ideal for Oil & Gas pipelines, LNG and hydrogen projects, refineries, and general process duties.
Size Range & Pressure Class
Size: 1/2” to 8”
Pressure Class: 150#, 300#, 600#, 800#, 900#, 1500#, 2500#
Available with soft- or metal-seated trims based on service conditions.
Materials of Construction (MOC)
Engineered to handle corrosive and cryogenic media with durability:
Choose trims and seats to match media, temperature and differential pressure.
Product Specifications
| Size Range | 1/2" to 8" |
|---|---|
| Class |
150#
300#
600#
800#
900#
1500#
2500#
|
| MOC |
Carbon Steel
Low Alloy Steel
Low Temperature Carbon Steel
Low Temperature Alloy Steel
Stainless Steel
Duplex & Super Duplex Steel
Inconel
Monel
Hastelloy
|
| End Connections / Construction |
Flange End
Butt Weld End
Socket Welded
Screwed
|
| Design Standard |
API 6D
API 608
|
| Testing Standard |
API 6D
API 598
BS EN 12266-1
|
| Operation Type |
Manual
Gear Operated
Actuator Operated
|
| Industries |
Oil & Gas
Petrochemicals
Chemicals & Fertilizers
Green/Blue Hydrogen
Power
LNG
FPSO
Water
|
Why Choose Oswal Floating Ball Valves?
Broad Pressure Coverage
Classes 150 to 2500 with low torque operation and positive shut-off.
Standards-Compliant
Designed to API 6D / API 608 and tested to API 6D, API 598, BS EN 12266-1.
Safety Options
Fire-safe, anti-static device, locking and emission-control options available.
Material Flexibility
CS, SS, Duplex & super alloys for corrosive, cryogenic and high-DP services.
Get A Quote
Share size, class, end connection and material — our team will respond with the best configuration.
